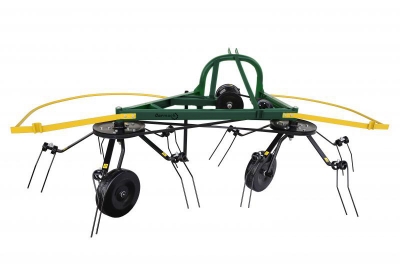

Enhance your hay drying process with the Carousel Tedder G-6, a specialized implement designed to ted freshly mown low-stem green plants and dried hay efficiently. This exceptional machine delicately spreads and turns mown crops in a uniform manner, significantly accelerating the drying process. The tedder is specifically crafted for compatibility with tractors in class 0.6 and higher, ensuring seamless integration into your agricultural operations.
Features:
-
Version: Equipped with wheels and tires (6 spring tines in every rotor).
-
Mounting: Utilizes a three-point suspension system for secure attachment.
-
Composition: Consists of a sturdy frame, efficient steering/proper system, two rotors, and a safety guard.
-
Frame Construction: Welded profiles, wide and flat bars enable easy installation of additional components.
-
Rotor Design: Each rotor includes a pulley with drawing belt and 6 raking arms equipped with resilient double tines.
-
Rotor Drive: Connected to the tractor via RPM and articulated telescopic shaft for seamless power transmission.
Specifications:
-
Machine Symbol: G-6
-
Machine Type: Mountable
-
Working Width: 2.63 meters
-
Working Mechanism Type: Rotors with spring tines
-
Number of Rotors: 2
-
Rotor Wheelbase: 1350 mm
-
Raking Wheel Diameter: 1280 mm
-
Kind of Tines: Resilient, double
-
Spring Tines Wheelbase: 95 mm
-
Spring Tine Diameter: 8.5 mm
-
Number of Spring Tines in Rotor: 6
-
Number of Wheels: 2
-
Tires: 4.80/4.00-8
-
Rotor Drive: From PTO through belt transmission
-
RPM: 540 rotations/min
-
Number of Rotor Rotations: 270 rotations/min
-
Power Demand: 10 kW
-
Tractor Class: Minimum 0.6
-
Weight: 170 kg
-
Working Speed: 6-12 km/h
-
Working Capacity: Up to 3.2 ha/h
-
Max. Transportation Speed: Up to 25 km/h
-
Overall Dimensions:
-
Length: 1480 mm
-
Width: 2630 mm
-
Height: 1100 mm
The Carousel Tedder G-6 offers exceptional versatility, efficiency, and reliability in the hay-making process, making it an ideal choice for farmers seeking enhanced productivity and top-quality results in their agricultural endeavors.
